MONOCULAR
INCLINED MICROSCOPE |
Model : SI-6 |
|
Standard Specifications |
Best resolution optical system
microscope |
Eyepieces H10x & H15X (2Nos) |
Parfocal Achro-Objectives 10x,
40x/45x, 100 x Retractable SL |
Rack & Pinion focus system
with safety stopper |
Fine focus by slow motion mechanism |
Plain square stage with co-axal
mechanical stage |
Extremely efficient NA 1.25 condenser
iris diaphragm moveable up & down |
Built-in 6v-20w halogen bulb light
& variable intensity control regulator |
Input 220-230v AC 50Hz. |
|
|
Standard Accessories
One spare bulb, blue filter, 2ml Imm.Oil, dust cover, Instruction
manual, thermocol box packing (Wooden box and WF15x E.P. optional) |
|
|
|

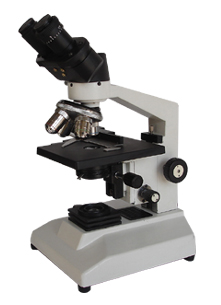

WIDE
FIELD BINOCULAR MICROSCOPE |
Model : SI-6B
Standard Accessories
Best resolution optical system
microscope |
45° inclined comfortable viewing
360° rotatable 50-75mm interpupillary adjustments |
One eyepiece tube provided with
diopter adjustments ring is standard feature. |
Eyepieces WF10x ( 1 Pair ) |
Parfocal Achro-Objectives 10x,
40x/45x, 100x Oil.(SL Retractable) |
Rack & Pinion coarse focus
system with safety stopper |
Fine focus by slow motion mechanism
graduated 1div = 0.002mm |
Plain stage with co-axal mechanical
stage |
Extremely efficient NA 1.25 condenser
iris diaphragm moveable up & down |
Built-in 6v-20w halogen bulb light
& variable intensity control regulator |
Input 220-230v AC 50Hz. |
Standard Accessories
One spare bulb, blue filter, 2ml Imm.Oil, dust cover, Instruction
manual, thermocol box packing (Wooden box and WF15x E.P. optional)
|
|
|
|
|
WIDE
FIELD TRINOCULAR MICROSCOPE |
Model : SI-6T
Standard Accessories
Best resolution optical system
microscope |
45° inclined comfortable viewing
360° rotatable 50-75mm interpupillary adjustments |
One eyepiece tube provided with
diopter adjustments ring is standard feature. |
Eyepieces WF10x ( 1 Pair ) |
Parfocal Achro-Objectives 4x, 10x,
40x/45x, 100x Oil.(SL Retractable) |
Rack & Pinion coarse focus
system with safety stopper |
Fine focus by slow motion mechanism
graduated 1div = 0.002mm |
Plain stage with co-axal mechanical
stage |
Extremely efficient NA 1.25 condenser
iris diaphragm moveable up & down |
Built-in 6v-20w halogen bulb light
& variable intensity control regulator |
Input 220-230v AC 50Hz. |
Standard Accessories
One spare bulb, blue filter, 2ml Imm.Oil, dust cover, Instruction
manual, thermocol box packing (Wooden box and WF15x E.P. optional)
|
|
|
|
|
|

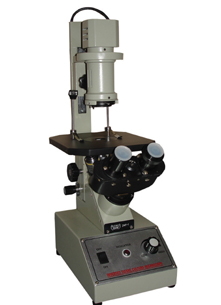

INVERTED TISSSUE CULTURE
MICROSCOPE |
Suitable for tissue culture examinations in Microbiology,
Biotechnology and many other deptts.
Model : SIT-1. |
|
Standard Specifications |
45° inclined comfortable
viewing 50-75mm IPD adjustments, |
One eyepiece tube provided with
diopter adjustments ring is standard feature. |
Magnification range 40x to 300x |
Eyepieces WF10x and WF15x (1 Pair
) |
Parfocal Achro-Objectives 4x, 10x,
20x |
Rack & Pinion coarse focus
system |
Fine focus by slow motion mechanism
graduated 1div = 0.002mm |
Height adjustment mechanism is
provided between lamp and stage for big culture disc. |
A filter holder is provided for
different contrast imaging |
Illumination system built-in 6v-20w
halogen bulb light & intensity control regulator,
Input 220-230v AC 50Hz. |
|
|
Standard Accessories
One spare bulb, filter, 2 rubber eye guard, dust cover |
|
|
|
Inverted Metallurgical
Microscope |
Suitable for Engineering Colleges, Polytechnics
for study of metals structures and grains etc. |
Model :SM-400 |
|
Standard Specifications |
45° inclined comfortable
viewing 50-75mm IPD adjustments, |
One eyepiece tube provided with
diopter adjustments ring is standard feature. |
Eyepieces WF10x (1 Pair ) One ASTM
Grain Size Eyepiece |
Parfocal Achro-Objectives 4x, 10x,
20x SL, 40x/45x Retractable SL |
Rack & Pinion coarse focus
system with safety stopper |
Fine focus by slow motion mechanism
graduated 1div = 0.002mm |
Stage fitted with mechanical stage
for X-Y direction movement of specimen samples |
Annular plates for small size samples
supplied with microscope |
Epi-illumination system built-in
6v-20w halogen bulb light & intensity control regulator,
Input 220-230v AC 50Hz. |
|
|
Standard Accessories
One spare bulb, filter, 2 rubber eye guard, dust cover |
|
|
|

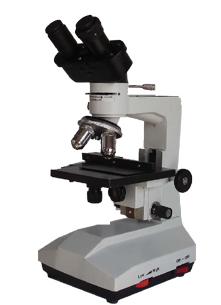

METALLURGICAL
BINOCULOAR MICROSCOPE |
Suitable for Engineering Colleges, Polytechnics for study
of metals structures and grains etc.
Model : SM-2 |
|
Standard Specifications |
45° inclined comfortable
viewing 50-75mm IPD adjustments, |
One eyepiece tube provided with
diopter adjustments ring is standard feature. |
Eyepieces WF10x (1 Pair ) One ASTM
Grain Size Eyepiece |
Parfocal Achro-Objectives 4x, 10x,
20x, 40x/45x Retractable SL |
Rack & Pinion coarse focus
system |
Fine focus by slow motion mechanism
graduated 1div = 0.002mm |
Stage fitted with mechanical stage
for X-Y direction movement of specimen samples |
Height adjustment mechanism is
provided between objective and stage for big height
sample. |
A filter holder is provided for
different contrast imaging |
Epi-illumination system built-in
6v-20w halogen bulb light & intensity control regulator,
Input 220-230v AC 50Hz. |
|
|
Standard Accessories
One spare bulb, 2 filter, 2 rubber eye guard, dust cover,
wooden |
|
|
|
METALLURGICAL TRINOCULOAR
MICROSCOPE |
Model : SM-3 |
|
Standard Specifications |
45° inclined comfortable viewing
360° rotatable 50-75mm IPD adjustments, One eyepiece
tube provided with diopter adjustments ring is standard
feature. Two position light sliding system
(I) 100% light to trinocular tube - camera
(II) 100% light to binocular E.P.
Other specification same as Model:SM-2
Optional : CCTV Camera System, Digital Camera System.
|
|
|
|
|
|
