STEREO
Microscope |

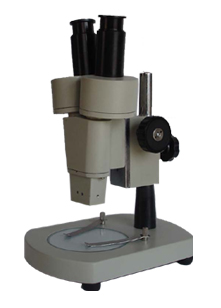

Model : SI-10
Suitable for precision dissection / inspection of
minute specimens. |
| |
| Standard Specifications |
| Magnification 20X |
3-D true erect image, large field
of view, 50-75mm IPD adjustments |
80mm working distance |
2X high resolution achromatic objectives,
|
WF10X multiplayer coated eyepieces
for sharp vision |
Rack & Pinion fine focusing
system |
Binocular head adjustable on pole
type simple stand, 82mm dia glass stage with black &
white matted plate for field contrast |
|
| |
Standard Accessories
Dust cover, Instruction manual, thermocol packing |
| |
|
|
| STEREO Microscopes |
Model : SI-15 (With Reflector Light Stand)
Optional Spares for SI-10, SI-15
WF15X multiplayer coated pair eyepiece. |
| |
|
|
|
| STEREO Microscope |

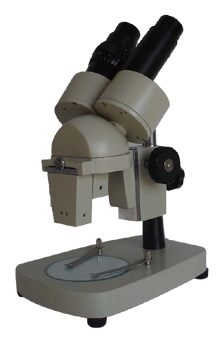

Model : SI-55
Suitable For Precision Dissection / Inspection / Assembly of
Minute Specimens. |
| |
| Standard Specifications |
| Magnification 20X to 40X |
| 45º inclined comfort viewing
head , 50 – 75mm IPD adjustments |
| One eyepiece tube with diopter adjustment
ring for spectacle wearer |
| 3-D true erect image and wide field
of view |
| 80mm to 55mm working distance |
| 2X & 4X sliding type high resolution
achromatic objectives, |
| WF10X 30mm dia multiplayer coated
eyepieces for sharp vision |
| Rack & Pinion fine focusing system |
| Binocular head adjustable on pole
type simple stand, 82mm dia glass stage with black &
white matted plate for field contrast |
|
| |
Standard Accessories
Dust cover, thermocol box packing |
| |
|
|
| STEREO
Microscopes |
Model : SI-56 (With Reflector Light Stand)
Optional Spares for SI-55, SI-56
WF15X 30mm dia multiplayer coated pair eyepiece. |
| |
|
|
| ADVANCE STEREO
Microscope |

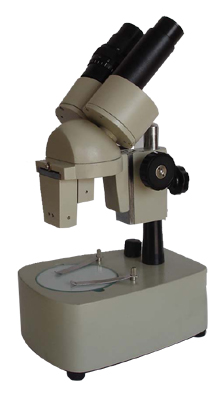

Model : SI-77
Suitable For Precision Dissection / Inspection / Assembly
of Minute Specimens. |
| |
| Standard Specifications |
| Magnification 20X to 40X |
45º inclined head , 50 –
75mm IPD adjustments for comfort viewing, |
One eyepiece tube with diopter
adjustment ring for spectacle wearer. |
| 3-D true erect image and wide field
of view |
| 80mm to 55mm working distance |
| 2X & 4X sliding type high resolution
achromatic objectives, |
| WF10X 30mm dia multiplayer coated
eyepieces for sharp vision |
| Rack & Pinion fine focusing system |
| Binocular head adjustable on pole
type simple stand, 82mm dia glass stage with black &
white matted plate for field contrast |
Built-in 6v-20w halogen light,
variable intensity control regulator, input 220-230v
AC 50Hz |
|
| |
Standard Accessories
One spare bulb, blue filter, Dust cover, Instruction manual,
thermocol box packing |
| |
|
|
| ADVANCE STEREO Microscope |
Model : SI-87
Suitable For Precision Dissection / Inspection / Assembly
of Minute Specimens. |
| |
| Standard Specifications |
| Magnification 20X to 40X |
45º inclined head , 50 –
75mm IPD adjustments for comfort viewing, |
One eyepiece tube with diopter
adjustment ring for spectacle wearer. |
| 3-D true erect image and wide field
of view |
| 80mm to 55mm working distance |
| 2X & 4X Turret type high resolution
achromatic objectives, |
| WF10X 30mm dia multiplayer coated
eyepieces for sharp vision |
| Rack & Pinion fine focusing system |
| Binocular head adjustable on pole
type simple stand, 95mm dia stage (black & white)
for field contrast |
|
| |
Standard Accessories
Dust cover, thermocol box packing |
| |
|
|
|
RESEARCH
STEREO Microscope |
Model : SI-88 (With Top & Bottom Light)
Suitable For Precision Dissection / Inspection / Assembly,
Shorting of Minute Specimens. |
| |
| Standard Specifications |
Magnification 20X to 40X, |
45ºinclined 360º rotatable
head , 50 – 75mm IPD adjustments for comfort viewing,
|
One eyepiece tube with diopter
adjustment ring for spectacle wearer. |
3-D true erect image, wide field
of view |
80mm to 55mm working distance |
2X & 4X turret revolving high
resolution achromatic objectives, |
WF10X 30mm dia multiplayer coated
eyepieces for sharp vision |
Rack & Pinion fine focusing
system |
Incident and transmitted / top
& bottom light stand, 75mm dia glass stage
with black& white metal plate for field contrast |
Built-in top & bottom light
of 6v bulbs with On / Off switch, input 220-230v
AC 50Hz |
|
| |
Standard Accessories
Two spare bulbs, Dust cover, Instruction manual, thermocol box
packing |
| |
|
|
STEREO
ZOOM BINOCULAR Microscope |
Model : SZ-5 |
| |
| Standard Specifications |
45º inclined 360º rotatable
head , 50 – 75mm IPD adjustments for comfort viewing,
One eyepiece tube with diopter adjustment ring for spectacle
wearer. |
Magnification 7X to 45X, working
distance 95mm |
Zoom objectives 0.7X to 4.5X continuous
variable, Zoom ratio 1:64 |
Field of view 28.5mm to 4.4mm |
Super wide field eyepiece
SWF10X F.N.20mm of 30mm dia |
Rack & Pinion fine focusing
system by two large dia knobs |
Binocular head adjustable on pole
type simple stand, 95mm dia glass stage with black &
white Perspex plate for field contrast |
Microscope equipped with top &
bottom lights of12v-10w halogen bulbs with variable
control intensity regulator, input 220-230v AC 50Hz |
|
| |
Standard Accessories
Black & white Perspex plate, 2 spare bulbs, Dust cover,
thermocol box packing |
| |
|
|
STEREO
ZOOM TRINOCULAR Microscope |
Model : SZ-5T |
| |
| Standard Specifications |
Equipped with 2 position light sliding system in Trinocular
head
- 100% light to Binocular eyepiece
- 70% light to camera and 30% to Binocular eyepiece
All optical specification same as per model SZ-5.
Optional Spares / Accessories for SZ-5, SZ-5T
Eyepieces SWF15X, SWF20X, SWF25X, Digital camera, Auxillary
objectives 0.5X, 0.75X, 1.5X, 2X, Fluorescent Ring light,
Fiber optic dual cold light. |
| |
Standard Accessories
Dust cover, Instruction manual, thermocol box packing |
| |
|
|
|
| |
