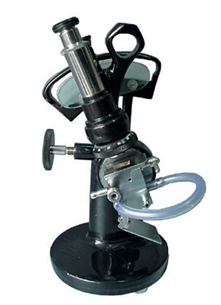

| ABBE REFRACTOMETER |
Model : SA-1
Designed for quick and accurate measuring optical system by using few drops of sample, suitable for industries and instructions which manufacturing Sugar, Paraffin, Waxes, Glue, Animal & Plant Fats, Glycerin, Alcohol etc. Instrument also used for Education & Training to the lab chemists in institutions. |
| |
| Standard Specifications |
| Measuring Scales |
Refractive Index nD 1.300 to nD 1.700 |
| Brix Scale |
0 to 95% |
| Temperature Reading |
By mercury filled attachable thermometer 0-50deg.C |
| Stand / Body |
Aluminium caste one-piece body |
| Light Source |
reflecting mirror |
|
| |
Standard Accessories
Mercury thermometer, Standard glass plate, Contact solution, Dust cover, Instruction manual, plywood box. |
| |
| |
| BUTYRO REFRACTOMETER |
| Model : SB-1 (Oil and Butter Refractometer) |
| |
| Standard Specifications |
| Measuring Scales |
Butyro 0 to 100 with 0.01 direct reading on micrometer |
| Brix Scale |
Sugar 50 to 80% in 1 % accuracy |
|
| |
Standard Accessories
Mercury thermometer 0 to 100deg.C, plywood box. |
| |
|
|
| HAND REFRACTOMTERS |
Small size Refractometer designed for quick reading field
and in laboratory by using few drops of sample, suitable to
industries which are manufacturing Soft Drinks, Juices, Jams,
Honey and other products. Equipped with short wave filter which
differentiate demarcation line better for accurate reading,
instruments workable on day light and available in 3 ranges.
Range A : 0-32% with 0.2% minimum
scale for products having low concentrations.
Range B : 28-62% with 0.2% minimum scale for products
having medium concentrations.
Range C : 58-92% with 0.2% ,minimum scale for products
having high concentrations.
|
|
|

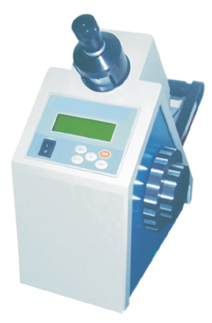

| DIGITAL ABBE REFRACTROMETER |
SALIENT FEATURES
Measurement of Refreractive index nD of transparent
or transculents liquid and solid substance.
Measurement of brix of sugar solution
Prism made of hard glass
Visual aim and LCD Display
Automatic correction of the effect of temperature
on the Brix
Printer Interface for direct data print-out.
RS232 |
| |
| SPECIFICATIONS |
| Make |
SI AR - 10 |
| Measurement range Refractive index nD |
1.3000-1.7000 |
| Measurement range dissolved solids Brix |
0-100% |
| Accuracy refractive index nD |
≤ + 0.0002, |
| Accuracy Dissolved Solids Brix |
+ ≤ 0.1% |
| Temperature Resolution |
0.1°C |
| Temperature Range (Min 0.1°C) |
0.-50°C |
| Correcting Range of Brix Versus Temperature |
15-45°C |
| Usage Temperature Range |
Ambient to 35°C |
| Interface |
RS232 |
| Dimensions (mm) WxDxH |
370x240x470 |
| Power Supply |
220V / 50Hz |
| Gross weight |
12 kg |
|
| |
|
|
|
