| Projection
Microscope |
Suitable for R& D labs in Textile, Wood pulp,
Paper industries, Agronomy, Nematology and more. |
Model : SP-85 |
| |
| Standard Specifications |
Dust proof metal body equipped with 200mm dia glass screen
rotatable 360º. and graduated vertically & horizontally
in cross position, each division represent 1mm and every 10th
line numbered for direct measuring of samples and calibration
of magnifications with the help of stage micrometer slide.
Magnification Range
: 125x to 1000x
Achromatic Parfocal objectives 5x/0.1, 10x/0.25,
20x/0.65(SL), 40x/45x(SL)
Built-in projection eyepiece with calibrations focusing system
Co-axial mechanical stage plate for X-Y direction movement
of slides with graduation reading up to 0.1mm
Coarse and fine focusing provides for smooth focus.
Extremely efficient for resolution and contrast control N.A.
1.25 abbe’s design with iris diaphragm 1-25mm opening
moveable up & down on rack & pinion mechanism. Also
provided light centering system by two knurled head
screws.
Built-in 12v-100w halogen light & intensity control regulator,
Input 220-230v AC 50-60Hz
Standard Accessories
One spare bulb, Blue filter, 0.01mm Stage micrometer slide,
Dustcover, Instruction / working manual thick cardboard packing. |
| |
|
|
| PROJECTION MICROSCOPE |
Model:SP-80 |
| |
| Standard Specifications |
Dust proof sheet metal body ,150 mm dia glass screen easily
removeable allowing projection on wall screen, suitable for
group disscussions
Built-in projection eye piece in body,4x,10x,40x/45x projection
lens |
| |
|
|
|

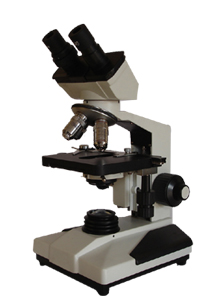

Binocular
Research Microscope |
Model : SH-2 (Co-axial Focusing System) |
| |
| Standard Specifications |
Best resolution optical system
microscope |
45º Inclined Binocular head,
360º Rotatable for comfort viewing, IPD adjustments
50 – 75mm , one eyepiece tube diopter adjustment
ring is standard feature |
Ball bearing mounted quadruple
revolving nose-piece |
Achromatic Parfocal objectives
4x/0.1, 10x/0.25, 40x/45x(SL), 100x/1.25(SL) Oil Imm.
|
WF10x paired Anti fungal treated
|
140x120mm co-axial mechanical stage
with low position knobs for X-Y direction movement
with graduation reading up to 0.1mm |
Co-axial coarse and fine focusing
mechanism is designed for frequent use provides a smooth
adjustment, coarse focus with upper limit stopper fine
focus graduated to 0.002mm. |
Extremely efficient N.A. 1.25 condenser
with 1-25mm opening iris diaphragm, filter holder, up
& down moveable on rack & pinion. |
Built-in 6v-20w halogen light with
intensity control regulator, input 220-230v AC 50Hz. |
|
| |
Standard Accessories
One spare bulb, Blue filter, 2 rubber eye guards, 2ml Imm.Oil,
Dustcover, Instruction / working manual, thermocol box packing. |
| |
|
|
Trinocular
Research Microscope |
Model : SH-3 (Co-axial Focusing System) |
| |
| Standard Specifications |
Best resolution optical system
microscope |
45° inclined comfortable
viewing 360° rotatable 50-75mm interpupillary adjustments |
One eyepiece tube provided with
diopter adjustments ring is standard feature. |
Two position light sliding system |
(I) 100% light to trinocular tube
/ camera |
(II) 100% light to binocular eyepieces |
Other Specifications same as model
SH-2 |
|
| |
Standard Accessories
Dust cover, Instruction manual, thermocol box packing. |
| |
|
|
Phase
Contrast Binocular Microscope |
Phase contrast technique provide clear contrast of specimen
without dying and therefore useful for observing alive or
transparent specimens, microscope quite suitable for research
work.
Model : SXL-2-PC |
| |
| Standard Specifications |
| Optical |
Anti Fungal shield
objectives used for long time working. |
| Model |
SXL-2PC has full plan PH10x,
PH20x, PH40x, PH100x all phase contrast objectives. |
| Binocular Head |
Latest design compensation free
sidentopf 30º Inclined 360º rotatable
Binocular head for comfort viewing, IPD 50 – 75mm
adjustments, one eyepiece tube diopter adjustment ring
is standard feature. |
| Nose-piece |
Ball bearing mounted quadruple nose-piece |
| Objectives |
LB Plan Parfocal PH10x, PH20x, PH40x,
PH100x Oil Imm. DIN standard |
| Eyepiece |
WF10x FN18mm paired eyepieces |
| Telescopic eyepiece |
for centering phase discs |
| Stage |
Double layer ball bearing mounted
guide ways co-axial mechanical stage with low position
right hand knobs for X-Y direction movement with graduation
reading up to 0.1mm. |
| Focusing |
Co-axial coarse and fine focusing
mechanism is designed for frequent use provides a smooth
adjustment, coarse focus with upper limit stopper |
| Phase contrast cum bright
field option |
5 position turret
mounted phase discs with ’O’ ring for bright
field, NA 1.25 condenser moveable up & down on rack
& pinion with iris diaphragm. |
| Illumination |
Built-in 6v-20w halogen lamp light
with lamp & intensity regulator, input 220-230v AC
50Hz as per CE standard. |
| Standard Accessories |
One spare bulb, Green, Blue filter,
2ml Imm Oil, Dustcover, Instruction / working manual,
plywood box. |
|
|
|
Phase
Constrast Trinocular Microscope |
Model :SXL-3-PC |
| |
| Standard Specifications |
Equipped with latest design compensation free, sidentopf
30º Inclined 360º rotatble Trinocular head for comfort
viewing, IPD 50 – 75mm adjustments, one eyepiece tube
diopter adjustment ring is standard feature. Two position
light sliding system.
(1) 100% light to binocular eyepiece
(2) 80% light to trinocular tube / camera and 20% light
to binocular eyepiece
All other specifications same as Model SXL-2-PC. |
|
|
|
| Digital Microscope |
Model : SC-1
Standard Specifications
|
| |
Standard Specifications
A economic high resolution CCTV microscope system suitable
for teaching. demonstration of slides. group discussion in class
rooms, just attach to TV set or Monitor. |
Image format by CCD colour sensor
420 TVL camera. 1 lux minimum illumination. S-Video,
R-Video, USB 1.0 out put connector. |
45° inclined comfortable viewing
360° rotatable 50-75mm IPD adjustments, One eyepiece
tube provided with diopter adjustments ring is standard
feature.
|
Two position light sliding system
(I) 100% light to trinocular tube - camera
(II) 100% light to binocular E.P.
|
Eyepieces WF10x (1 Pair ) |
Parfocal Achro-Objectives 4x, 10x,
40x/45xSL, 100x Oil. Retractable |
Rack & Pinion coarse focus
system with safety stopper |
Fine focus by slow motion mechanism
graduated 1div = 0.002mm |
140x120mm Co-axial mechanical stage
with low position knobs for X-Y direction movement with
reading up to 0.1mm. |
Extremely efficient NA 1.25 condenser
iris diaphragm moveable up & down |
| Built-in 6v-20w halogen bulb light
& variable intensity regulator |
| Input 220-230v AC 50Hz. |
|
| |
Standard Accessories
CCD camera & coupler, 12v power supply, connecting cables,
One spare bulb, blue filter, 2 rubber eye guard, dust cover. |
| |
| Optional Accessories 15”, 14”,
11” LCD TV / Monitor, PCI card to use microscope with
PC for image recording and storing, 480 TVL , 530 TVL resolution
camera also available. |
|
|
|
