| DISSECTING MICROSCOPE |
| Model : SI-1 |
| |
| Standard Specifications |
Round Base and with Square stage with clear glass and matted
plate, slide holding clips Focusing by rack and pinion, two
hinged joint arm for eyepiece 10x 20x magnifying glass with
hand rests, reflector mirror
|
| |
Standard Accessories
Dust cover and packed in thermocol box. |
| |
| |
| DISSECTING MICROSCOPE |
Model : SI-2 ( Bull Eye Lens Type )
Quite suitable for Botany, Zoology, Geology, Fisheries
examinations. |
| |
Standard Specifications
Round Base and Microscope fitted with big dia bull eye lens
for big objects
Square stage with clear glass and matted plate, slide holding
clips
Focusing by rack and pinion, two hinged joint arm for eyepiece
10x, 20x magnifying glasses for small objects. reflector mirror |
| |
Standard Accessories
Dust cover and packed in thick cardboard box. |
| |
|
|

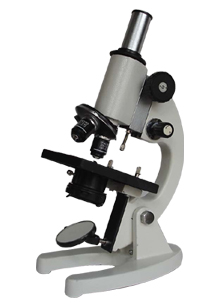

STUDENT
MICROSCOPE |
Model : SI-3 (Fixed Condenser Model) |
| |
| Standard Specifications |
Best resolution optical system
microscope |
Eyepieces H10x & H15X (2Nos) |
Parfocal Achro-Objectives 10x,
40x/45x Retractable SL |
Rack & Pinion focus system
with safety stopper |
Fine focus by slow motion mechanism |
Plain square stage with two stage
clips |
| Efficient NA 1.25 fixed condenser
with iris diaphragm |
| Plano-concave mirror provides transmitted
light source |
|
| |
Standard Accessories
Dust cover, Instruction manual, thermocol box packing. |
| |
|
|
PENTAX
MICROSCOPE (Student) |
Model:SN-1(single nose)
Baby model having vertical monocular body
Focusing by rack and pennion motion
Eye piece 10x and objective10x magnification 100x.
Illumination by plano concave mirror and substage disc diaphragm.
Standard Accessories
Dust cover,microscope packed in thermocol box.
|
| |
| |
|
|

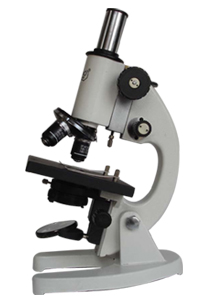

JUNIOR MEDICAL MICROSCOPE |
Model : SI-4 (moveable condenser)
|
| |
| Standard Specifications |
Best resolution optical system
microscope |
Eyepieces H10x & H15X (2Nos) |
Parfocal Achro-Objectives 10x,
40x/45x Retractable SL |
Rack & Pinion focus system
with safety stopper |
Fine focus by slow motion mechanism |
Plain square stage with two stage
clips |
Efficient NA 1.25 condenser with
iris diaphragm moveable on rack & pinion. |
Plano-concave mirror provides transmitted
light source |
|
| |
Standard Accessories
Dust cover, Instruction manual, thermocol box packing |
| |
|
|

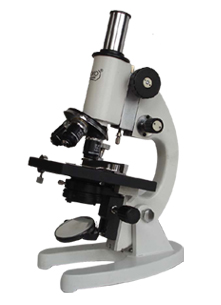

MEDICAL / LABORATORY
MICROSCOPE |
Model : SI-5 (For Education & Training)
|
| |
| Standard Specifications |
High resolution optical system
microscope for Educational purpose |
Body inclinable to 90° on base |
Eyepieces H10x & H15X (2Nos) |
Parfocal Achro-Objectives 10x,
40x/45xSL, 100xOil |
Rack & Pinion focus system
with safety stopper, Fine focus by slow motion mechanism |
Plain square stage with two stage
clips |
Efficient NA 1.25 condenser with
iris diaphragm moveable on rack & pinion. |
Plano-concave mirror provides transmitted
light source |
|
| |
Standard Accessories
2ml Imm.Oil, Instruction manual, dust cover, thermocol box
packing |
| |
|
|
WIDE FIELD PATHOLOGY
LAB MICROSCOPE |
Model : SI-6 (For Pathology / Clinical
Labs) |
| |
| Standard Specifications |
High resolution optical system
microscope for pathology labs. |
Body inclinable to 90° on base |
Eyepieces WF10x |
Parfocal Achro-Objectives 10x,
40x/45xSL, 100xOil Pathology Grade rack & Pinion
focus system with safety stopper |
Fine focus by slow motion mechanism |
Plain square stage with two stage
clips |
Efficient NA 1.25 condenser with
iris diaphragm moveable on rack & pinion. |
Plano-concave mirror provides transmitted
light source |
|
| |
Standard Accessories
2ml Imm.Oil, Instruction manual, dust cover, thermocol box
packing |
| |
|
|
|
